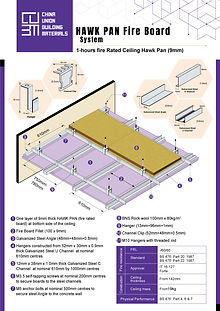

• One layer of 9mm thick HAWK PAN (fire rated board) at bottom side of the ceiling

• Fire Board Fillet (100 x 9mm)

• Galvanized Steel Angle (48mm×48mm×0.8mm)

• Hangers constructed from 52mm x 30mm x 0.9mm thick Galvanized Steel U Channel  at nominal 610mm centres

• 12mm x 38mm x 1.0mm thick Galvanized Steel C Channel  at nominal 610mm by 1000mm centres

• M3.5 seIf-tapping screws at nominal 200mm centres to secure boards to the steel channels

• M5 anchor bolts at nominal 500mm centres to secure steel Angle to the concrete wall

 BNS Rock wool 100mm x 80kg/m3

• Hanger (13mm×96mm×1mm)

• Channel Clip (52mm×48mm×0.5mm)

• M10 Hangers with threaded rod
